Manfrotto 496 Ball Head with 200PL-PRO Quick Release Plate

SKU: 182549618 - VSN: MH496-BHUS

$124.95

Load Capacity: 22 lb – Height: 4.5″ – Weight: 14.1 oz – RC2 Quick Release Cam Lock – Up to 90° Portrait Angle Tilt – Independent 360° Rotation with Lock – Ball-and-Socket Tension Control – 200PL-PRO Quick Release Plate – RC2 Lock and Arca-Type Clamp Compatible

Only 2 left in stock

Location(s): Golden Valley

Share:

[addtoany]

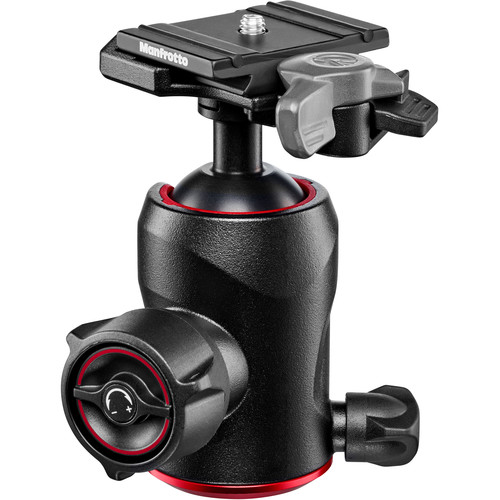

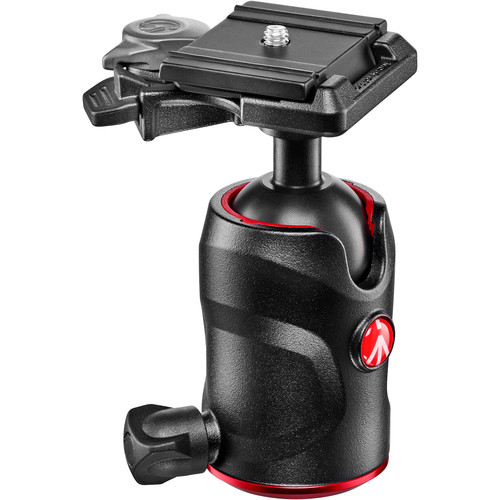

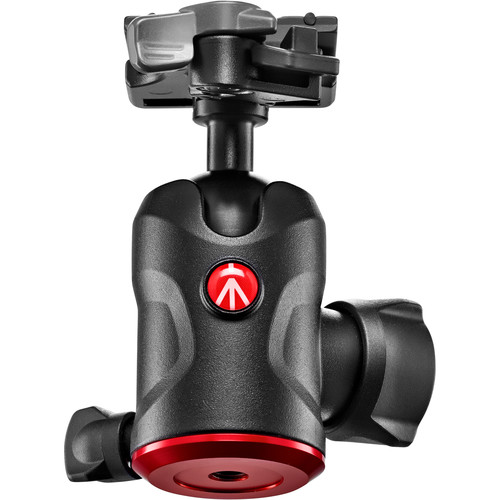

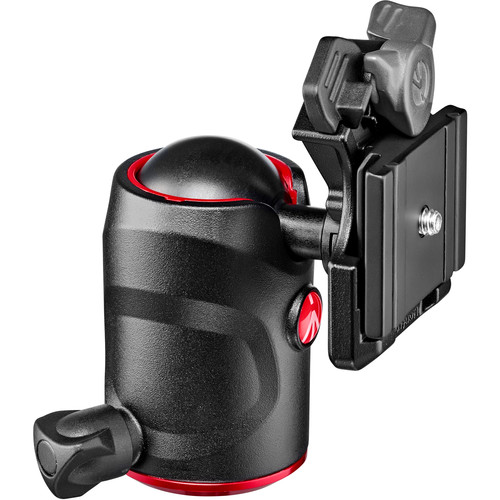

This Manfrotto 496 Ball Head features an integrated RC2 quick release cam lock and a 200PL-PRO Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock’s spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.

The 496 Ball Head with 200PL-PRO Quick Release Plate has a load capacity of 22 lb and can be attached to tripods or other support systems that feature a 3/8″-16 mount. By loosening the head’s primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint’s movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.

Cameras or accessories that are compatible with a 1/4″-20 mount can be connected to the 200PL-PRO quick release plate, as well as 3/8″-16 threads via an included bushing adapter. The plate is also compatible with separately available tripod heads that feature an Arca-type clamp.

494 Ball Head

  • 22 lb load capacity
  • Compatible with tripods or support systems that feature a 3/8″-16 mount
  • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
  • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
  • Integrated RC2 quick release cam lock
  • Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
  • Secondary locking knob allows head to rotate 360°
  • Dedicated tension control dial for the ball-and-socket joint’s movements
  • Durable, aluminum-alloy construction
200PL-PRO Quick Release Plate
  • Compatible with Manfrotto RC2 quick release cam lock and Arca-type quick release clamps
  • 1/4″-20 mount with support for 3/8″-16 via bushing adapter
  • Durable, aluminum-alloy construction

Additional information

Type

Tripod Head

Brand

Manfrotto

BRAND INFORMATION

Brand Name Manfrotto
Product Type Tripod Head

GENERAL INFORMATION

Material Aluminum

TECHNICAL INFORMATION

QR Plate 200PL Pro
Base Mount 3/8"-16 Female
Panning Range 360°
Load Capacity 22 lb / 9.98 kg
Friction Control Yes
Independent Pan Lock Yes
Camera Mounting Screw 1/4"-20 Male & 3/8" - 16 with Bushing

PHYSICAL CHARACTERISTICS

Weight 14.1 oz / 400 g
Head Type Ball Head
Working Height 4.53"
