ProMaster Dovetail QR Panning Clamp – 360º

SKU: 186017880 - VSN: 1788

$99.95

Dovetail QR Panning Clamp – Arca-Type Compatible – Multiple Engraved Scales – Includes 70mm QR Plate – Three Bubble Levels – Safety Bolts

Only 2 left in stock

Location(s): Golden Valley

Share:

The Dovetail QR Panning Clamp adds a 360˚ upper panning ability to a tripod head, and fits ProMaster tripods, heads, and gimbals that use the Dovetail Mounting System, as well as other Arca-type products.

There are two ways of attaching the Dovetail QR Panning Clamp to a tripod head. It has a dovetail plate attached to its base which allows it to connect to any Arca-type receiver. Alternatively, the dovetail base can be removed; exposing a 3/8”-16 threaded port for mounting.

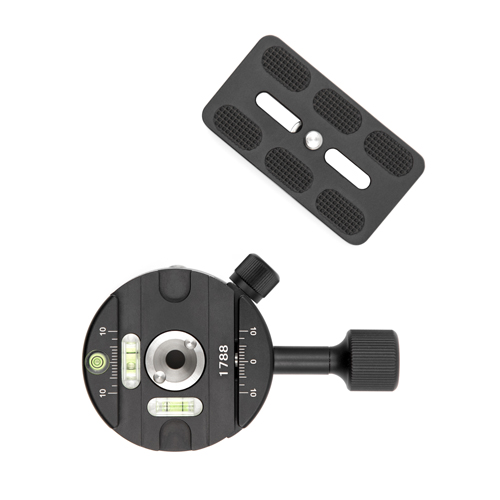

A camera or lens can be attached to the Dovetail QR Panning Clamp with the included 70mm Dovetail Quick Release Plate (1795). The clamp also accepts L-Brackets, other Arca-type QR plates, and the lens foot of many lenses; such as the one found on the Tamron 150-600mm G2.

Additional features include:

  • Two removable safety bolts in the Quick Release Plate prevent the plate from sliding out of the clamp.
  • Anti-twist soft pads on top of the plate help them to stay in place once mounted to a camera or lens.
  • Three bubble levels (two line levels and one bullseye level).
  • Etched scales on the panning base, QR receiver, and QR plate allow for precise movements and repeatable setups.

Additional information

Type

Tripod Head

GENERAL INFORMATION

Weight 1 3/4 oz / 217 grams
Brand Name ProMaster
Product Type Accessory
Clamp Dimensions 1.25" H x 3.9" L / 32 mm H x 101 mm L including QR knob
